Комплекс проблем, особенно пропуски волнуют

В этом разделе можно выкладывать списки ошибок для последующих советов по устранению.
Аватара пользователя
alex6999
Член Клуба
Сообщения: 3746
Зарегистрирован: Сб мар 28, 2015 10:36 am
Репутация: 56
Модель: A8 2012
Мотор: CDRA
Город: Таронто
Имя: Лёша
Откуда: Минск
Контактная информация:

Комплекс проблем, особенно пропуски волнуют

Сообщение alex6999 »

Нашёл кабель.... в бардачке лежал
Как раз вчера села батарея, заменил, так что многие ошибки оттуда
4113 - Camshaft Position Sensor (G40)
8626 - Camshaft Position Sensor (G163)
это нормально для данного мотора, глюк прошивки

8218 - Post-Catalyst Oxygen (Lambda) Sensor Correction; Bank 2
P2098 00 [096] - Too Lean
2947 - Oxygen (Lambda) Sensor Signal B2 S2
P2272 00 [096] - too Lean
4120 - Oxygen (Lambda) Sensor B2 S1
P2198 00 [237] - Signal too High (Rich)

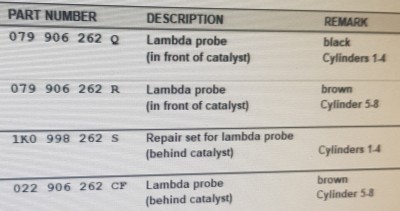

Это мне надо сенсор менять, какой? второй банк на стороне водителя или пассажира?
до ката или после?

10150 - Intake Manifold Flap; Bank 1
P2004 00 [096] - Stuck Open
было один раз, загорелост TCM(вроде) и что обороты до 4000 лимитированы


10203 - Random/Multiple Cylinder Misfire Detected
10595 - Cylinder 5
P0305 00 [032] - Misfire Detected
10598 - Cylinder 8
P0308 00 [032] - Misfire Detected
10596 - Cylinder 6
P0306 00 [032] - Misfire Detected
10597 - Cylinder 7
P0307 00 [032] - Misfire Detected

Катушки? но почему только в одной голове?
машина начинает дёргатся на ходу


11510 - Evap System Leak Detection or Fuel Vapor Temp Sensor
P2025 00 [096] - Implausible Signal

10534 - EVAP System Pressure Sensor
P0450 00 [032] - Malfunction

10535 - EVAP System Pressure Sensor
P0451 00 [096] - Implausible

9025 - Manifold / Barometric Pressure Sensor (G71) / (F96)
P0106 00 [096] - Implausible Signal

7780 - Engine Off Timer Performance

а это шо? последствия севшей батареи?

0051 - Hall Sensors in Motor 1 for Rear Lid
это есть, крышка останавливается иногда непонятно где


Полный лог пол спойлером
Текст:

Код: Выделить всё

Sunday,09,January,2022,12:18:36:00007
VCDS -- Windows Based VAG/VAS Emulator Running on Windows 7 x64
VCDS Version: 18.9.0.2 (x64)
Data version: 20180927 DS296.0
www.Ross-Tech.com


VIN: WAUCVAFDXCN029119   License Plate:
Mileage: 153670km-95486mi   Repair Order:



--------------------------------------------------------------------------------
--------------------------------------------------------------------------------


Chassis Type: FD-AU64 (4H0)
Scan: 01 02 03 05 06 08 09 0E 10 13 15 16 17 19 1B 28 34 36 3B 3C
          42 46 47 52 53 56 5F 62 6C 6D 6F 72 81 85 88 89 8B 8E 8F 90


VIN: WAUCVAFDXCN029119   Mileage: 153670km-95486miles

01-Engine -- Status: Malfunction 0010
02-Auto Trans -- Status: OK 0000
03-ABS Brakes -- Status: OK 0000
04-Steering Angle -- Status: OK 0000
05-Acc/Start Auth. -- Status: Malfunction 0010
06-Seat Mem. Pass -- Status: OK 0000
08-Auto HVAC -- Status: OK 0000
09-Cent. Elect. -- Status: OK 0000
0E-Media Player 1 -- Status: OK 0000
10-Park/Steer Assist -- Status: OK 0000
13-Auto Dist. Reg -- Status: Malfunction 0010
15-Airbags -- Status: OK 0000
16-Steering wheel -- Status: OK 0000
17-Instruments -- Status: OK 0000
19-CAN Gateway -- Status: Malfunction 0010
1B-Active Steering -- Status: OK 0000
28-HVAC, Rear -- Status: OK 0000
34-Level Control -- Status: OK 0000
36-Seat Mem. Drvr -- Status: OK 0000
3B-Sensor Elect. -- Status: OK 0000
3C-Lane Change -- Status: Malfunction 0010
42-Door Elect, Driver -- Status: OK 0000
46-Central Conv. -- Status: OK 0000
47-Sound System -- Status: OK 0000
52-Door Elect, Pass. -- Status: OK 0000
53-Parking Brake -- Status: OK 0000
56-Radio -- Status: OK 0000
5F-Information Electr. -- Status: OK 0000
62-Door, Rear Left -- Status: OK 0000
6C-Back-up Cam. -- Status: OK 0000
6D-Trunk Elect. -- Status: Malfunction 0010
6F-Centr. Conv. II -- Status: OK 0000
72-Door, Rear Right -- Status: OK 0000
81-Gear Shift -- Status: OK 0000
85-On Board Cam. -- Status: OK 0000
88-Multicont. Seat Driver -- Status: OK 0000
89-Multicont. Seat Pass. -- Status: OK 0000
8B-Adaptive Cruise 2 -- Status: Malfunction 0010
8E-Image Processing -- Status: OK 0000
8F-Pretens. Frt Left -- Status: OK 0000
90-Pretens. Frt Right -- Status: OK 0000

-------------------------------------------------------------------------------
Address 01: Engine (------CDRA)       Labels:| 079-907-560-CFS.clb
   Part No SW: 4H0 907 560 C    HW: 4H0 907 560
   Component: 4.2l V8/4V    H07 0004
   Revision: N5H07---
   Coding: 0106000A290F0268
   Shop #: WSC 02313 785 00200
   ASAM Dataset: EV_ECM42FSI0114H0907560C 001005
   ROD: EV_ECM42FSI0114H0907560C.rod
   VCID: 2A5BB4A94DFF2E1AAB-807E

21 Faults Found:
5453 - Starter Relay
          P3088 00 [096] - Electrical Malfunction
          Intermittent - Not Confirmed - Tested Since Memory Clear

4483 - Function Restriction due to Faults in Other Modules
          U1113 00 [032] - -
          Intermittent - Not Confirmed - Tested Since Memory Clear

4629 - ECM Power Relay Load Circuit
          P068A 00 [032] - Opens Too Early
          Intermittent - Not Confirmed - Tested Since Memory Clear

4113 - Camshaft Position Sensor (G40)
          P0341 00 [032] - Implausible Signal
          Intermittent - Not Confirmed - Tested Since Memory Clear

8626 - Camshaft Position Sensor (G163)
          P0346 00 [032] - Implausible Signal
          Intermittent - Not Confirmed - Tested Since Memory Clear

8218 - Post-Catalyst Oxygen (Lambda) Sensor Correction; Bank 2
          P2098 00 [096] - Too Lean
          Intermittent - Not Confirmed - Tested Since Memory Clear

2947 - Oxygen (Lambda) Sensor Signal B2 S2
          P2272 00 [096] - too Lean
          Intermittent - Not Confirmed - Tested Since Memory Clear
             Freeze Frame:
                    Fault Status: 00000001
                    Fault Priority: 2
                    Fault Frequency: 1
                    Mileage: 153480 km
                    Date: 2022.01.06
                    Time: 14:18:36

                    Engine speed: 1905.50 /min
                    Normed load value: 36.1 %
                    Vehicle speed: 115 km/h
                    Coolant temperature: 98 °C
                    Intake air temperature: -2 °C
                    Ambient air pressure: 980 mbar
                    Voltage terminal 30: 13.640 V
                    Unlearning counter according OBD: 16
                    AFS dm: 104.2 kg/h
                    Median injection timing: 1.166 ms
                    Engine operating condition: Part. load
                    Engine operating condition-Test_Program_Channel 87: 6

10150 - Intake Manifold Flap; Bank 1
          P2004 00 [096] - Stuck Open
          Intermittent - Not Confirmed - Tested Since Memory Clear
             Freeze Frame:
                    Fault Status: 00000001
                    Fault Priority: 2
                    Fault Frequency: 1
                    Mileage: 152045 km
                    Date: 2021.12.20
                    Time: 09:47:50

                    Engine speed: 2053.00 /min
                    Normed load value: 44.7 %
                    Vehicle speed: 124 km/h
                    Coolant temperature: 104 °C
                    Intake air temperature: 15 °C
                    Ambient air pressure: 990 mbar
                    Voltage terminal 30: 13.782 V
                    Unlearning counter according OBD: 16
                    AFS dm: 135.1 kg/h
                    Median injection timing: 1.556 ms
                    Engine operating condition: Part. load
                    Engine operating condition-Test_Program_Channel 87: 6

4027 - Oxygen (Lambda) Sensor B2 S2
          P0158 00 [096] - Signal too High
          Intermittent - Not Confirmed - Tested Since Memory Clear

10203 - Random/Multiple Cylinder Misfire Detected
          P0300 00 [040] - -
          Intermittent - Confirmed - Tested Since Memory Clear
             Freeze Frame:
                    Fault Status: 00000001
                    Fault Priority: 2
                    Fault Frequency: 10
                    Mileage: 142853 km
                    Date: 2021.11.10
                    Time: 20:35:33

                    Engine speed: 1934.50 /min
                    Normed load value: 32.5 %
                    Vehicle speed: 117 km/h
                    Coolant temperature: 102 °C
                    Intake air temperature: 13 °C
                    Ambient air pressure: 980 mbar
                    Voltage terminal 30: 13.970 V
                    Unlearning counter according OBD: 36
                    AFS dm: 66.7 kg/h
                    Median injection timing: 0.949 ms
                    Engine operating condition: Part. load
                    Engine operating condition-Test_Program_Channel 87: 6

10595 - Cylinder 5
          P0305 00 [032] - Misfire Detected
          Intermittent - Not Confirmed - Tested Since Memory Clear

10598 - Cylinder 8
          P0308 00 [032] - Misfire Detected
          Intermittent - Not Confirmed - Tested Since Memory Clear
             Freeze Frame:
                    Fault Status: 00000001
                    Fault Priority: 2
                    Fault Frequency: 3
                    Mileage: 152590 km
                    Date: 2021.12.28
                    Time: 10:48:35

                    Engine speed: 1854.00 /min
                    Normed load value: 38.4 %
                    Vehicle speed: 114 km/h
                    Coolant temperature: 83 °C
                    Intake air temperature: 8 °C
                    Ambient air pressure: 980 mbar
                    Voltage terminal 30: 13.735 V
                    Unlearning counter according OBD: 27
                    AFS dm: 96.9 kg/h
                    Median injection timing: 1.275 ms
                    Engine operating condition: Part. load
                    Engine operating condition-Test_Program_Channel 87: 6

10596 - Cylinder 6
          P0306 00 [032] - Misfire Detected
          Intermittent - Not Confirmed - Tested Since Memory Clear
             Freeze Frame:
                    Fault Status: 00000001
                    Fault Priority: 2
                    Fault Frequency: 2
                    Mileage: 153561 km
                    Date: 2022.01.07
                    Time: 19:49:37

                    Engine speed: 1907.50 /min
                    Normed load value: 18.8 %
                    Vehicle speed: 115 km/h
                    Coolant temperature: 96 °C
                    Intake air temperature: -12 °C
                    Ambient air pressure: 990 mbar
                    Voltage terminal 30: 13.876 V
                    Unlearning counter according OBD: 36
                    AFS dm: 102.5 kg/h
                    Median injection timing: 2.286 ms
                    Engine operating condition: Part. load
                    Engine operating condition-Test_Program_Channel 87: 6

10597 - Cylinder 7
          P0307 00 [032] - Misfire Detected
          Intermittent - Not Confirmed - Tested Since Memory Clear

11510 - Evap System Leak Detection or Fuel Vapor Temp Sensor
          P2025 00 [096] - Implausible Signal
          Intermittent - Not Confirmed - Tested Since Memory Clear
             Freeze Frame:
                    Fault Status: 00000001
                    Fault Priority: 2
                    Fault Frequency: 2
                    Mileage: 153636 km
                    Date: 2022.01.08
                    Time: 19:13:06

                    Engine speed: 0.00 /min
                    Normed load value: 0.0 %
                    Vehicle speed: 0 km/h
                    Coolant temperature: 60 °C
                    Intake air temperature: 36 °C
                    Ambient air pressure: 990 mbar
                    Voltage terminal 30: 11.025 V
                    Unlearning counter according OBD: 40
                    AFS dm: 0.0 kg/h
                    Median injection timing: 0.000 ms
                    Engine operating condition: Idling
                    Engine operating condition-Test_Program_Channel 87: 5

10534 - EVAP System Pressure Sensor
          P0450 00 [032] - Malfunction
          Intermittent - Not Confirmed - Tested Since Memory Clear

10535 - EVAP System Pressure Sensor
          P0451 00 [096] - Implausible
          Intermittent - Not Confirmed - Tested Since Memory Clear

4120 - Oxygen (Lambda) Sensor B2 S1
          P2198 00 [237] - Signal too High (Rich)
          MIL ON - Confirmed - Tested Since Memory Clear
             Freeze Frame:
                    Fault Status: 00000001
                    Fault Priority: 2
                    Fault Frequency: 25
                    Mileage: 120296 km
                    Date: 2020.10.25
                    Time: 14:02:59

                    Engine speed: 2048.00 /min
                    Normed load value: 33.3 %
                    Vehicle speed: 124 km/h
                    Coolant temperature: 84 °C
                    Intake air temperature: 13 °C
                    Ambient air pressure: 990 mbar
                    Voltage terminal 30: 14.229 V
                    Unlearning counter according OBD: 40
                    AFS dm: 101.8 kg/h
                    Median injection timing: 1.190 ms
                    Engine operating condition: Part. load
                    Engine operating condition-Test_Program_Channel 87: 6

9025 - Manifold / Barometric Pressure Sensor (G71) / (F96)
          P0106 00 [096] - Implausible Signal
          Intermittent - Not Confirmed - Tested Since Memory Clear

7780 - Engine Off Timer Performance
          P150A 00 [096] - -
          Intermittent - Not Confirmed - Tested Since Memory Clear

4261 - System Voltage
          P0562 00 [096] - Too Low
          Intermittent - Not Confirmed - Tested Since Memory Clear

Readiness: 0000 0000

-------------------------------------------------------------------------------
Address 02: Auto Trans (J217)       Labels:| 0BK-927-156.clb
   Part No SW: 4H1 927 158 BR    HW: 0BK 927 156 AF
   Component: 0BK 42 FSIUSA H16 1003
   Revision: --H16---
   Coding: 000002
   Shop #: WSC 00000 000 00000
   ASAM Dataset: EV_TCMALX51011 002018
   ROD: EV_TCMALX51011.rod
   VCID: 0109330590090D42DA-8054

No fault code found.

-------------------------------------------------------------------------------
Address 03: ABS Brakes (J104)       Labels: 4H0-907-379.clb
   Part No SW: 4H0 907 379 E    HW: 4H0 907 379 E
   Component: ESP PREMIUM   H10 0352
   Revision: --------    Serial number: --------------
   Coding: 44F6B200226F4D00E200
   Shop #: WSC 02313 785 00200
   ASAM Dataset: EV_ESPPremi 005013
   ROD: EV_ESPPremi_005_AU64.rod
   VCID: 3467AAD19F3B68EA01-8060

No fault code found.

-------------------------------------------------------------------------------
Address 05: Acc/Start Auth. (J393)       Labels:. 8K0-907-064-05.clb
   Part No SW: 4H0 907 064 DD    HW: 4H0 907 064 BD
   Component: BCM2 2.0      H31 0510
   Revision: 00002001
   Coding: 0D872006000000000000
   Shop #: WSC 65151 000 1048576
   VCID: 6ED378B9B997023A37-803A

   Subsystem 2 - Part No SW: 4H0 905 852 C    HW: 4H0 905 852 C
   Component: J764 ELV MLB  H39 0046
   Serial number: 2311000275192011

2 Faults Found:
00956 - Key 2
            002 - Lower Limit Exceeded
             Freeze Frame:
                    Fault Status: 01100010
                    Fault Priority: 3
                    Fault Frequency: 1
                    Reset counter: 161
                    Mileage: 149978 km
                    Time Indication: 0
                    Date: 2021.12.07
                    Time: 12:30:25

00955 - Key 1
            002 - Lower Limit Exceeded - Intermittent
             Freeze Frame:
                    Fault Status: 00100010
                    Fault Priority: 3
                    Fault Frequency: 2
                    Reset counter: 241
                    Mileage: 140105 km
                    Time Indication: 0
                    Date: 2021.10.29
                    Time: 08:24:44


-------------------------------------------------------------------------------
Address 06: Seat Mem. Pass (J521)       Labels: None
   Part No SW: 4H0 959 760 E    HW: 4H0 959 760 E
   Component: MEM-BFS       H08 0153
   Revision: AA000000    Serial number: 00000023160758
   Coding: C018320085043201010001010101112131313333283333
   Shop #: WSC 02313 785 00200
   VCID: 356197D59C4171E236-8060

No fault code found.

-------------------------------------------------------------------------------
Address 08: Auto HVAC (J255)       Labels:| 4H0-820-043.clb
   Part No SW: 4H0 820 043 H    HW: 4H0 820 043 H
   Component: Klima 4 Zonen H20 0110
   Coding: 488120B8CC
   Shop #: WSC 02313 785 00200
   ASAM Dataset: EV_AirCondiFront 001050
   ROD: EV_AirCondiFront_001_AU64.rod
   VCID: 2541479524E1016286-8070

No fault code found.

-------------------------------------------------------------------------------
Address 09: Cent. Elect. (J519)       Labels:. 4H0-907-063-V1.clb
   Part No SW: 4H0 907 063 BP    HW: 4H0 907 063
   Component: BCM1 2.0      H12 0111
   Revision: 11012002    Serial number: 00000001223738
   Coding: 09072096073C9FF39B010804A0003800009CD308820001218001085C3B00
   Shop #: WSC 02313 785 00200
   VCID: 77FD5DDDC6CD43F2E4-8022

   Subsystem 1 - Part No SW: 4H1 955 119 C    HW: 4H1 955 119 A  Labels: 1KX-955-119.CLB
   Component: WWS641 120120  H35 0080
   Serial number:         120125011955
   Coding: 0045F7

   Subsystem 2 - Part No SW: 8K0 955 559 C    HW: 8K0 955 559 C  Labels: 8K0-955-559.CLB
   Component: RLS  H04 0003
   Serial number: 10209156
   Coding: 025523

   Subsystem 3 - Part No SW: 4H0 941 531 B    HW: 4H0 941 531 B
   Component: E1 - LDS  H07 0044
   Serial number: 24 01 2012  00000638

   Subsystem 4 - Part No SW: 4G0 907 410 A    HW: 4H0 907 410 A
   Component: USHL4.2  H30 0030
   Serial number: 0000002274555R13JL02

   Subsystem 5 - Part No SW: 4H0 907 472 B    HW: 4H0 907 472 B
   Component: A31 LED Mod1L  H03 0006
   Serial number: 00000023011200010703
   Coding: 100000

   Subsystem 6 - Part No SW: 4H0 907 472 B    HW: 4H0 907 472 B
   Component: A27 LED Mod1R  H03 0006
   Serial number: 00000026011200010317
   Coding: 100000

   Subsystem 7 - Part No SW: 4H0 907 705 K    HW: 4H0 907 705 C
   Component: EVLS-SG  H08 0300
   Serial number: WA102470000000724712
   Coding: 020300

   Subsystem 8 - Part No SW: 4H0 907 658     HW: 4H0 907 658
   Component: AQ_Hum_Sensor  H02 0002
   Serial number: C8580116000000000001

No fault code found.

-------------------------------------------------------------------------------
Address 0E: Media Player 1 (R161)       Labels: None
   Part No SW: 4H0 035 108 E    HW: 4H0 035 108
   Component: DVDCAlpine    H42 0190
   Revision: AA001001
   Coding: 010000
   Shop #: WSC 02313 785 00200
   VCID: 224B5C893DCFF65AE3-8076

No fault code found.

-------------------------------------------------------------------------------
Address 10: Park/Steer Assist (J446)       Labels:| 4H0-919-475-7X2.clb
   Part No SW: 4H0 919 475 L    HW: 4H0 919 475 C
   Component: PARKHILFE ACC H07 0043
   Revision: 11001001    Serial number: 55901134702943
   Coding: 280902
   Shop #: WSC 43101 003 1048576
   ASAM Dataset: EV_EPHVA18AU57X0000 002005
   ROD: EV_EPHVA18AU57X0000_002_AU64.rod
   VCID: 3B7581EDB265A792C0-806E

No fault code found.

-------------------------------------------------------------------------------
Address 13: Auto Dist. Reg (J428)       Labels:| 4H0-907-561.clb
   Part No SW: 4H0 907 561 B    HW: 4H0 907 561
   Component: ACC3          H17 0400
   Serial number: 00000000000000
   Coding: 3601010201
   Shop #: WSC 02313 785 00200
   ASAM Dataset: EV_AdaptCruisContrAU64X 002021
   ROD: EV_AdaptCruisContrAU64X_002.rod
   VCID: 2A5BB4A94DFF2E1AAB-807E

3 Faults Found:
12032 - Sensor for Automatic Distance Regulation; Incorrectly Positioned
          C1103 00 [009] -  -
          [New feature! Extended UDS fault detail is only supported by current gen. interfaces]
          Confirmed - Tested Since Memory Clear
             Freeze Frame:
                    Fault Status: 00000001
                    Fault Priority: 2
                    Fault Frequency: 254
                    Reset counter: 207
                    Mileage: 111708 km
                    Date: 2020.04.16
                    Time: 20:10:20

                    Control Module temperature: 16 °C
                    Voltage terminal 15: 13.670 V
                    Velocity_vehicle_reference: 35.69 m/s
                    Longitudinal_acceleration_vehicle_reference: 0.03 m/s²

16640 - Function Restricted due to Insufficient Voltage
          U1400 00 [008] - -
          [New feature! Extended UDS fault detail is only supported by current gen. interfaces]
          Intermittent - Confirmed - Tested Since Memory Clear
             Freeze Frame:
                    Fault Status: 00000001
                    Fault Priority: 6
                    Fault Frequency: 1
                    Reset counter: 246
                    Mileage: 153636 km
                    Date: 2022.01.08
                    Time: 19:52:02

                    Control Module temperature: 2 °C
                    Voltage terminal 15: 9.257 V
                    Velocity_vehicle_reference: -0.01 m/s
                    Longitudinal_acceleration_vehicle_reference: 0.00 m/s²

145152 - Function Restriction due to Faults in Other Modules
          U1113 00 [008] - -
          [New feature! Extended UDS fault detail is only supported by current gen. interfaces]
          Intermittent - Confirmed - Tested Since Memory Clear
             Freeze Frame:
                    Fault Status: 00000001
                    Fault Priority: 6
                    Fault Frequency: 2
                    Reset counter: 218
                    Mileage: 149283 km
                    Date: 2021.12.03
                    Time: 16:36:07

                    Control Module temperature: 21 °C
                    Voltage terminal 15: 14.649 V
                    Velocity_vehicle_reference: -0.02 m/s
                    Longitudinal_acceleration_vehicle_reference: 0.40 m/s²


-------------------------------------------------------------------------------
Address 15: Airbags (J234)       Labels:* 4H0-959-655.clb
   Part No SW: 4H0 959 655 D    HW: 4H0 959 655 D
   Component: Airbag10.43   H41 0041
   Revision: --------    Serial number: 003JS0018CJ4
   Coding: 303143303230303030314A55304C34483053
   Shop #: WSC 02391 785 00200
   ASAM Dataset: EV_AirbaAU10BPAAU64X 001014
   ROD: EV_AirbaAU10BPAAU64X_VW51.rod
   VCID: 377D9DDD8E4D83F224-8062

   Seat occupied recognition:
   Subsystem 1 - Part No SW: 4H0 959 339 A    HW: 4H0 959 339 A
   Component: BF-Gewichtss.  H03 0040
   Serial number: 5850000R11C0802PG4
   Coding: 000000

   Crash sensor for side airbag: driver side:
   Serial number: 3575HRB405F131GUAP6J

   Crash sensor for side airbag: front passenger side:
   Serial number: 3585HRB405D131GUEH08

   Crash sensor for side airbag: rear: driver side:
   Serial number: 3515JRB405B1138A89GI

   Crash sensor for side airbag: rear: passenger side:
   Serial number: 3525JRB405B1138AHGJ

   Crash sensor for front airbag: driver side:
   Serial number: 3554VRB40511138C80NN

   Crash sensor for front airbag: front passenger side:
   Serial number: 3564VRB40551138CFH7-

No fault code found.

-------------------------------------------------------------------------------
Address 16: Steering wheel (J527)       Labels:. 4H0-953-568.clb
   Part No SW: 4H0 953 568 H    HW: 4H0 953 568 H
   Component: Lenks.Modul   H03 0005
   Revision: --------    Serial number: 90815LAU0001T
   Coding: 0004BC
   Shop #: WSC 02313 785 00200
   VCID: 387F9EE18B538C8A2D-806C

   Subsystem 1 - Part No SW: 4H0 951 528 L    HW: 4H0 951 528 L
   Component: E221 - MFL  H09 0009
   Serial number: 23 12 2011  B1034487

No fault code found.

-------------------------------------------------------------------------------
Address 17: Instruments (J285)       Labels:. 4H0-920-xxx-17.clb-SRI1
   Part No SW: 4H0 920 930 K    HW: 4H0 920 930 K
   Component: TBenRDWACC--- H71 0416
   Revision: 35081058    Serial number: 658020212592047
   Coding: 0B8F080177000008020000
   Shop #: WSC 02313 785 00200
   ASAM Dataset: EV_RBD4K 004045
   ROD: EV_RBD4K.rod
   VCID: 2E53B8B97117423A77-807A

   Analog_clock:
   Subsystem 1 - Part No SW: 4H0 919 204 G    HW: 4H0 919 204 G
   Component: Analoguhr D4  H05 0224
   Serial number: 1120116000315

No fault code found.

-------------------------------------------------------------------------------
Address 19: CAN Gateway (J533)       Labels: None
   Part No SW: 4H0 907 468 G    HW: 4H0 907 468 C
   Component: J533--Gateway H08 0214
   Revision: --------    Serial number: 00000000351027
   Coding: 00C1034A00
   Shop #: WSC 02313 785 00200
   ASAM Dataset: EV_GatewUDS 001025
   ROD: EV_GatewUDS_AU57.rod
   VCID: 356197D5944171E236-8060

   Battery Monitoring Control Module:
   Subsystem 1 - Part No SW: 4H0 915 181     HW: 4H0 915 181
   Component: J367-BDM  H07 0140
   Serial number: 00000000005650540153

1 Fault Found:
12291 - Energy Management Active
          U140B 00 [008] - -
          [New feature! Extended UDS fault detail is only supported by current gen. interfaces]
          Intermittent - Confirmed - Tested Since Memory Clear
             Freeze Frame:
                    Fault Status: 00000001
                    Fault Priority: 7
                    Fault Frequency: 3
                    Reset counter: 246
                    Mileage: 153636 km
                    Date: 2022.01.08
                    Time: 19:13:32

                    Voltage terminal 30: 11.1 V
                    Voltage terminal 15: 0.0 V
                    Control Module temperature: 8 °C
                    System status: Awake_Timer_active
                    IN ESP_standstill flag: standstill detected
                    Engine running: OFF
                    IN ZAS_Te_X: OFF
                    Terminal 15 status via CAN: OFF
                    Terminal 15 status: OFF
                    Datenfeld: 1


-------------------------------------------------------------------------------
Address 1B: Active Steering (J792)       Labels: None
   Part No SW: 4H0 907 144 B    HW: 4H0 907 144 B
   Component: DYNAMIKLENK.  H06 0090
   Revision: 51001005    Serial number: --------------
   Coding: 8B0000
   Shop #: WSC 02313 785 00200
   VCID: 275D4D9D56ED1372B4-8072

No fault code found.

-------------------------------------------------------------------------------
Address 28: HVAC, Rear (E265)       Labels:| 4H0-919-158.clb
   Part No SW: 4H0 919 158 D    HW: 4H0 919 158 D
   Component: Klima Fond    H16 0111
   Coding: 0000000000
   Shop #: WSC 02313 785 00200
   ASAM Dataset: EV_AirCondiHeck 001039
   ROD: EV_AirCondiHeck.rod
   VCID: 3169A3C560295DC26A-8064

No fault code found.

-------------------------------------------------------------------------------
Address 34: Level Control (J197)       Labels:. 4G0-907-553.clb
   Part No SW: 4H0 907 553 E    HW: 4H0 907 553
   Component: LUFE-DAEMPFER H17 0099
   Coding: 008006
   Shop #: WSC 02313 785 00200
   ASAM Dataset: EV_AirSuspe 003024
   ROD: EV_AirSuspe_VW51.rod
   VCID: 2E53B8B97117423A77-807A

No fault code found.

-------------------------------------------------------------------------------
Address 36: Seat Mem. Drvr (J136)       Labels: None
   Part No SW: 4H0 959 760 E    HW: 4H0 959 760 E
   Component: MEM-FS        H08 0153
   Revision: AA000000    Serial number: 00000023160530
   Coding: C0183B0085053201010001010101112131313333203333
   Shop #: WSC 02313 785 00200
   VCID: 356197D59C4171E236-8060

No fault code found.

-------------------------------------------------------------------------------
Address 3B: Sensor Elect. (J849)       Labels: None
   Part No SW: 4H0 907 637 A    HW: 4H0 907 637 A
   Component: SARA 6D red   H02 0020
   Revision: --------    Serial number: EJ1BPA3700L4D%0
   Shop #: WSC 00000 000 00000
   ASAM Dataset: EV_SARA 009017
   ROD: EV_SARA_009.rod
   VCID: 2D51BFB57C1139224E-8078

1 Fault Found:
1048835 - Supply voltage
          U1011 00 [032] - Voltage too Low
          [New feature! Extended UDS fault detail is only supported by current gen. interfaces]
          Intermittent - Not Confirmed - Tested Since Memory Clear

-------------------------------------------------------------------------------
Address 3C: Lane Change        Labels: Redir Fail!
   Part No SW: 4H0 907 566 A    HW: 4G0 907 566
   Component: J769  SWA MasterH02 0040
   Revision: 00H02000    Serial number: 6PZ 010 287-07
   Coding: 0000001
   Shop #: WSC 02313 785 00200
   VCID: 2E53B8B9B917423A77-807A

   Subsystem 1 - Part No: 4H0 907 568 A
   Component: J770  SWA Slave H02 0040

   Subsystem 2 - Serial number: 6PZ 010 287-27

   Subsystem 3 - Serial number: 5F19.01.1200H020003CX27199ÿ

   Subsystem 4 - Serial number: X27199ÿ

1 Fault Found:
02856 - Sensing Area for Control Module 2 Blocked
            000 -  -  - Intermittent
             Freeze Frame:
                    Fault Status: 00100000
                    Fault Priority: 3
                    Fault Frequency: 2
                    Reset counter: 218
                    Mileage: 149283 km
                    Time Indication: 0
                    Date: 2021.12.03
                    Time: 16:36:05


-------------------------------------------------------------------------------
Address 42: Door Elect, Driver (J386)       Labels: None
   Part No SW: 4H0 959 793 G    HW: 4H0 959 793 G
   Component: TSG FA        H06 0261
   Revision: --------    Serial number: 0000124342814
   Coding: 011F1F005E0062C202003017
   Shop #: WSC 02313 785 00200
   VCID: 3D718FF5A471A9A2FE-8068

No fault code found.

-------------------------------------------------------------------------------
Address 46: Central Conv. (J393)       Labels:. 4H0-907-064-46.clb
   Part No SW: 4H0 907 064 DD    HW: 4H0 907 064 BD
   Component: BCM2 2.0      H31 0510
   Revision: 00002001    Serial number: 0168017636
   Coding: 0106063A00FA7585B3B0C7C0020301000000000000000000000000000000
   Shop #: WSC 02313 785 00200
   VCID: 6ED378B9B997023A37-803A

   Subsystem 1 - Part No SW: 4H0 959 719     HW: 4H0 959 719
   Component: GTO BF  H01 0080
   Serial number: 00000000000000064943

   Subsystem 2 - Part No: 1K0 951 605 C
   Component: LIN BACKUP HO  H05 1501

   Subsystem 3 - Part No SW: 4H0 959 591     HW: 4H0 959 591
   Component: J245 PS50.030  H07 0006
   Serial number:     WOO14618183
   Coding: 101F00

   Subsystem 4 - Part No SW: 4H0 947 135 BK    HW: 4H0 947 135 BK
   Component: Dachelektroni  H11 0080
   Serial number: A2012000000000519574
   Coding: 010000

   Subsystem 5 - Part No SW: 4H0 959 591 A    HW: 4H0 959 591 A
   Component: V252 PS010  H05 0005
   Serial number:     WOO1000MGN-

   Subsystem 6 - Part No SW: 3AA 962 243     HW: 3AA 962 243
   Component: GEB.F.Heckoef  H12 0719
   Serial number: 84208626

No fault code found.

-------------------------------------------------------------------------------
Address 47: Sound System (J525)       Labels: None
   Part No SW: 4G0 035 223 B    HW: 4G0 035 223 A
   Component: BOSE G3 C7    H07 0130
   Revision: CJ007000    Serial number: 00000000037364
   Coding: 030000
   Shop #: WSC 02313 785 00200
   VCID: 1C3762711FABC0AA29-8048

No fault code found.

-------------------------------------------------------------------------------
Address 52: Door Elect, Pass. (J387)       Labels: None
   Part No SW: 4H0 959 792 G    HW: 4H0 959 792 G
   Component: TSG BF        H06 0261
   Revision: --------    Serial number: 0000124349229
   Coding: 011F1F005E0062C202003007
   Shop #: WSC 02313 785 00200
   VCID: 3C7782F1BF6BA0AAC9-8068

No fault code found.

-------------------------------------------------------------------------------
Address 53: Parking Brake (----)       Labels: 4H0-907-801.clb
   Part No SW: 4H0 907 801 E    HW: 4H0 907 801 A
   Component: EPB-4         H03 0012
   Revision: --------    Serial number: 00000000242822
   ASAM Dataset: EV_ParkiBrake 001022
   ROD: EV_ParkiBrake_VW51.rod
   VCID: 2A5BB4A94DFF2E1AAB-807E

3 Faults Found:
71168 - Right Parking Brake Motor voltage supply
          C100E 13 [000] - Open Circuit
          Intermittent - Not Confirmed - Tested Since Memory Clear

10554390 - Supply voltage
          U1011 00 [000] - Voltage too Low
          [New feature! Extended UDS fault detail is only supported by current gen. interfaces]
          Intermittent - Not Confirmed - Tested Since Memory Clear

464384 - Function Restriction due to Faults in Other Modules
          U1113 00 [000] - -
          [New feature! Extended UDS fault detail is only supported by current gen. interfaces]
          Intermittent - Not Confirmed - Tested Since Memory Clear


-------------------------------------------------------------------------------
Address 56: Radio (R)       Labels: Redir Fail!
   Part No SW: 4H0 035 082 C    HW: 4H0 035 082
   Component: Radio U SIRIU H53 0101
   Revision: AB001007    Serial number: 235AJ0C7501016
   Coding: 020007010000000001
   Shop #: WSC 02313 785 00200
   VCID: 2149538538C9ED42FA-8074

No fault code found.

-------------------------------------------------------------------------------
Address 5F: Information Electr. (J794)       Labels:. 4E0-035-6xx-5F.clb
   Part No SW: 4H0 035 664 G    HW: 4H0 035 664
   Component: H-BN-NA       H48 0423
   Revision: --------    Serial number: 098AQ0C7505030
   Coding: 020200000001F9EF7D128B0E00000003F40001020000000000
   Shop #: WSC 02313 785 00200
   VCID: 2B55B1AD4A05371250-807E

   Subsystem 1 - Part No: 8R0 060 884 AD
   Component: NAR 2011  0505

   Subsystem 2 - Part No SW: 4H0 919 604 F    HW: 4H0 919 604 F
   Component: DU8 D4 SV NB  H47 0021
   Serial number: AUZ8ZDB93006WG-

   Subsystem 3 - Part No SW: 4H1 919 600 H    HW: 4H1 919 600
   Component: E380 BDT D4  H09 0065
   Serial number: 00000000068559

   Subsystem 4 - Part No: 8R0 060 961 B
   Component: CD-Database  3371

No fault code found.

-------------------------------------------------------------------------------
Address 62: Door, Rear Left (J388)       Labels: None
   Part No SW: 4H0 959 795 D    HW: 4H0 959 795 D
   Component: TSG HL        H06 0262
   Revision: --------    Serial number: 0000123976221
   Coding: 010F1F00400062C202003007
   Shop #: WSC 02313 785 00200
   VCID: 3C7782F1BF6BA0AAC9-8068

No fault code found.

-------------------------------------------------------------------------------
Address 6C: Back-up Cam.        Labels: 4H0-907-441.clb
   Part No SW: 4H0 907 441 A    HW: 4H0 907 441
   Component: SG Rueckfahrkamera  0061
   Revision: --H04---    Serial number: 525 PA8J18D0Y1
   Coding: 1081002
   Shop #: WSC 02391 785 00200
   VCID: 2643409991E70A7A8F-8072

No fault code found.

-------------------------------------------------------------------------------
Address 6D: Trunk Elect. (----)       Labels:* None
   Part No SW: 4H0 959 107 R    HW: 4H0 959 107 M
   Component: HDSG-Modul    H11 0039
   Revision: 10011001    Serial number: 018200025
   Coding: 0210044100
   Shop #: WSC 02313 785 00200
   ASAM Dataset: EV_DeckLidContrUnit 001025
   ROD: EV_DeckLidContrUnit.rod
   VCID: 3D718FF5AC71A9A2FE-8068

1 Fault Found:
0051 - Hall Sensors in Motor 1 for Rear Lid
          B1211 12 [008] - Short to Plus
          Intermittent - Confirmed - Tested Since Memory Clear
             Freeze Frame:
                    Fault Status: 00000001
                    Fault Priority: 3
                    Fault Frequency: 146
                    Reset counter: 247
                    Mileage: 129797 km
                    Date: 2021.04.15
                    Time: 12:02:55

                    Voltage terminal 30: 14.70 V


-------------------------------------------------------------------------------
Address 6F: Centr. Conv. II (J773)       Labels:* None
   Part No SW: 4H0 907 412     HW: 4H0 907 412
   Component: ALM           H05 0004
   Revision: --------    Serial number: 000000062013
   Coding: 000000
   Shop #: WSC 02313 785 00200
   ASAM Dataset: EV_Ambie 001008
   ROD: EV_Ambie.rod
   VCID: 63C5198D6A55BF52A8-8036

No fault code found.

-------------------------------------------------------------------------------
Address 72: Door, Rear Right (J389)       Labels: None
   Part No SW: 4H0 959 795 D    HW: 4H0 959 795 D
   Component: TSG HR        H06 0262
   Revision: --------    Serial number: 0000123976222
   Coding: 010F1F00400062C202003007
   Shop #: WSC 02313 785 00200
   VCID: 3C7782F1BF6BA0AAC9-8068

No fault code found.

-------------------------------------------------------------------------------
Address 81: Gear Shift (J587)       Labels: 3Y0-927-731.clb
   Part No SW: 4H1 927 731 A    HW: 4H1 927 731 A
   Component: GSM-LL        H08 0083
   Revision: 0L0D5013    Serial number: SN111212  0371
   ASAM Dataset: EV_GSM2x3Mono 001017
   ROD: EV_GSM2x3Mono.rod
   VCID: 2B55B1AD4205371250-807E

No fault code found.

-------------------------------------------------------------------------------
Address 85: On Board Cam. (J852)       Labels:| 7P6-907-217.clb
   Part No SW: 4G0 907 217     HW: 4H0 907 217 A
   Component: DPC-SG        H25 0036
   Revision: --------    Serial number: 262130025421000
   Coding: E9060000
   Shop #: WSC 02313 785 00200
   ASAM Dataset: EV_OnBoardCamerDPC 001007
   ROD: EV_OnBoardCamerDPC.rod
   VCID: 65C107956461C16246-8030

No fault code found.

-------------------------------------------------------------------------------
Address 88: Multicont. Seat Driver (J873)       Labels:* None
   Part No SW: 4H0 907 182 H    HW: 4H0 907 182 H
   Component: IVB           H07 0042
   Serial number: 00004463252301
   Coding: 764FF2
   Shop #: WSC 02313 785 00200
   ASAM Dataset: EV_IVBDriveSideFrnt 001003
   ROD: EV_IVBDriveSideFrnt.rod
   VCID: 2F6DA5BD761D4B327C-807A

No fault code found.

-------------------------------------------------------------------------------
Address 89: Multicont. Seat Pass. (J872)       Labels:* None
   Part No SW: 4H0 907 182 H    HW: 4H0 907 182 H
   Component: IVB           H07 0042
   Serial number: 00004283058802
   Coding: 364FF2
   Shop #: WSC 02313 785 00200
   ASAM Dataset: EV_IVBPasseSideFrnt 001003
   ROD: EV_IVBDriveSideFrnt.rod
   VCID: 2F6DA5BD761D4B327C-807A

No fault code found.

-------------------------------------------------------------------------------
Address 8B: Adaptive Cruise 2 (J428)       Labels:| 4H0-907-561.clb
   Part No SW: 4H0 907 541 B    HW: 4H0 907 541
   Component: ACC3          H17 0400
   Serial number: 00000000000000
   Coding: 3601010201
   Shop #: WSC 02313 785 00200
   ASAM Dataset: EV_AdaptCruisContr2AU64X 002018
   ROD: EV_AdaptCruisContr2AU64X_002.rod
   VCID: 285F4EA153F31C0ABD-807C

4 Faults Found:
12032 - Sensor for Automatic Distance Regulation; Incorrectly Positioned
          C1103 00 [009] -  -
          [New feature! Extended UDS fault detail is only supported by current gen. interfaces]
          Confirmed - Tested Since Memory Clear
             Freeze Frame:
                    Fault Status: 00000001
                    Fault Priority: 2
                    Fault Frequency: 254
                    Reset counter: 178
                    Mileage: 107390 km
                    Date: 2019.11.28
                    Time: 21:51:53

                    Control Module temperature: 18 °C
                    Voltage terminal 15: 14.658 V
                    Velocity_vehicle_reference: -0.01 m/s
                    Longitudinal_acceleration_vehicle_reference: 0.30 m/s²

16384 - Function Restricted due to Insufficient Voltage
          U1400 00 [008] - -
          [New feature! Extended UDS fault detail is only supported by current gen. interfaces]
          Intermittent - Confirmed - Tested Since Memory Clear
             Freeze Frame:
                    Fault Status: 00000001
                    Fault Priority: 6
                    Fault Frequency: 1
                    Reset counter: 246
                    Mileage: 153636 km
                    Date: 2022.01.08
                    Time: 19:52:02

                    Control Module temperature: 3 °C
                    Voltage terminal 15: 9.226 V
                    Velocity_vehicle_reference: -0.00 m/s
                    Longitudinal_acceleration_vehicle_reference: 0.00 m/s²

16640 - Function Restricted due to Insufficient Voltage
          U1400 00 [008] - -
          [New feature! Extended UDS fault detail is only supported by current gen. interfaces]
          Intermittent - Confirmed - Tested Since Memory Clear
             Freeze Frame:
                    Fault Status: 00000001
                    Fault Priority: 6
                    Fault Frequency: 1
                    Reset counter: 246
                    Mileage: 153636 km
                    Date: 2022.01.08
                    Time: 19:52:02

                    Control Module temperature: 3 °C
                    Voltage terminal 15: 9.226 V
                    Velocity_vehicle_reference: -0.00 m/s
                    Longitudinal_acceleration_vehicle_reference: 0.00 m/s²

145152 - Function Restriction due to Faults in Other Modules
          U1113 00 [008] - -
          [New feature! Extended UDS fault detail is only supported by current gen. interfaces]
          Intermittent - Confirmed - Tested Since Memory Clear
             Freeze Frame:
                    Fault Status: 00000001
                    Fault Priority: 6
                    Fault Frequency: 2
                    Reset counter: 218
                    Mileage: 149283 km
                    Date: 2021.12.03
                    Time: 16:36:07

                    Control Module temperature: 30 °C
                    Voltage terminal 15: 14.585 V
                    Velocity_vehicle_reference: -0.01 m/s
                    Longitudinal_acceleration_vehicle_reference: 0.39 m/s²


-------------------------------------------------------------------------------
Address 8E: Image Processing (J851)       Labels:| 4H0-907-107-V2.clb
   Part No SW: 4G0 907 107 D    HW: 4H0 907 107
   Component: BV-SG         H30 0038
   Serial number: 005000052801127
   Coding: 01A19A010111
   Shop #: WSC 02313 785 00200
   ASAM Dataset: EV_BC7 001001
   ROD: EV_BC7.rod
   VCID: 275D4D9D5EED1372B4-8072

No fault code found.

-------------------------------------------------------------------------------
Address 8F: Pretens. Frt Left (J854)       Labels: 4H0-980-94x-RGS.clb
   Part No SW: 4H0 980 945 B    HW: 4H0 980 945 B
   Component: RGS-VL        H13 0080
   Coding: 0066F609031F037E070308014240C0010000
   Shop #: WSC 02313 785 00200
   ASAM Dataset: EV_RGS_L 002004
   ROD: EV_RGS_L.rod
   VCID: 3169A3C560295DC26A-8064

No fault code found.

-------------------------------------------------------------------------------
Address 90: Pretens. Frt Right (J855)       Labels: 4H0-980-94x-RGS.clb
   Part No SW: 4H0 980 946 B    HW: 4H0 980 946 B
   Component: RGS-VR        H13 0080
   Coding: 0066F609031F037E070308014240C0010000
   Shop #: WSC 02313 785 00200
   ASAM Dataset: EV_RGS_R 002004
   ROD: EV_RGS_R.rod
   VCID: 326BACC9652F66DA13-8066

No fault code found.

End-------------------------(Elapsed Time: 07:18)--------------------------
На вкус и цвет все фломастеры разные. ¯_(ツ)_/¯
Аватара пользователя
Akin
Президент Клуба
Сообщения: 26203
Зарегистрирован: Пн авг 27, 2007 2:01 am
Репутация: 540
Модель: ___
Мотор: ___
Город: Королев
Имя: Владислав
Откуда: Москва

Комплекс проблем, особенно пропуски волнуют

Сообщение Akin »

Леш, сотри ошибки, покатайся километров сто, выложи свежие ошибки и показания по каналам основные.
Подумаем тогда.
Пропуски по одной голове могут быть из-за фаз.
Аватара пользователя
alex6999
Член Клуба
Сообщения: 3746
Зарегистрирован: Сб мар 28, 2015 10:36 am
Репутация: 56
Модель: A8 2012
Мотор: CDRA
Город: Таронто
Имя: Лёша
Откуда: Минск
Контактная информация:

Комплекс проблем, особенно пропуски волнуют

Сообщение alex6999 »

Стёр, проехал 300 км, почитал и стёр
вот что вышло
2947 - Oxygen (Lambda) Sensor Signal B2 S2
4120 - Oxygen (Lambda) Sensor B2 S1
Текст под спойлером, оборвал ибо времени небыло
Текст:

Код: Выделить всё

Wednesday,12,January,2022,06:42:16:00007
VIN: WAUCVAFDXCN029119   Mileage: 153988km-95683miles

-------------------------------------------------------------------------------
Address 01: Engine (------CDRA)       Labels:| 079-907-560-CFS.clb
   Part No SW: 4H0 907 560 C    HW: 4H0 907 560
   Component: 4.2l V8/4V    H07 0004
   Revision: N5H07---
   Coding: 0106000A290F0268
   Shop #: WSC 02313 785 00200
   ASAM Dataset: EV_ECM42FSI0114H0907560C 001005
   ROD: EV_ECM42FSI0114H0907560C.rod
   VCID: 2A5BB4A94DFF2E1AAB-807E

2 Faults Found:
2947 - Oxygen (Lambda) Sensor Signal B2 S2
          P2272 00 [101] - too Lean
          Not Confirmed - Tested Since Memory Clear
             Freeze Frame:
                    Fault Status: 00000001
                    Fault Priority: 2
                    Fault Frequency: 1
                    Mileage: 153917 km
                    Date: 2022.01.11
                    Time: 06:42:40

                    Engine speed: 1453.50 /min
                    Normed load value: 16.1 %
                    Vehicle speed: 28 km/h
                    Coolant temperature: 90 °C
                    Intake air temperature: 14 °C
                    Ambient air pressure: 990 mbar
                    Voltage terminal 30: 14.277 V
                    Unlearning counter according OBD: 40
                    AFS dm: 33.5 kg/h
                    Median injection timing: 1.359 ms
                    Engine operating condition: Idling
                    Engine operating condition-Test_Program_Channel 87: 5

4120 - Oxygen (Lambda) Sensor B2 S1
          P2198 00 [237] - Signal too High (Rich)
          MIL ON - Confirmed - Tested Since Memory Clear
             Freeze Frame:
                    Fault Status: 00000001
                    Fault Priority: 2
                    Fault Frequency: 1
                    Mileage: 153685 km
                    Date: 2022.01.11
                    Time: 03:14:26

                    Engine speed: 1893.50 /min
                    Normed load value: 42.0 %
                    Vehicle speed: 114 km/h
                    Coolant temperature: 105 °C
                    Intake air temperature: -17 °C
                    Ambient air pressure: 1000 mbar
                    Voltage terminal 30: 14.135 V
                    Unlearning counter according OBD: 40
                    AFS dm: 130.7 kg/h
                    Median injection timing: 1.527 ms
                    Engine operating condition: Part. load
                    Engine operating condition-Test_Program_Channel 87: 6

Readiness: 0000 1101
Проехал ещё 300 км
4120 - Oxygen (Lambda) Sensor B2 S1
9025 - Manifold / Barometric Pressure Sensor (G71) / (F96)
там ещё много чего не по мотору, но на это я создам отдельную тему
Текст:

Код: Выделить всё

VIN: WAUCVAFDXCN029119   Mileage: 154295km-95874miles

-------------------------------------------------------------------------------
Address 01: Engine (------CDRA)       Labels:| 079-907-560-CFS.clb
   Part No SW: 4H0 907 560 C    HW: 4H0 907 560
   Component: 4.2l V8/4V    H07 0004
   Revision: N5H07---
   Coding: 0106000A290F0268
   Shop #: WSC 02313 785 00200
   ASAM Dataset: EV_ECM42FSI0114H0907560C 001005
   ROD: EV_ECM42FSI0114H0907560C.rod
   VCID: 2A5BB4A94DFF2E1AAB-807E

2 Faults Found:
4120 - Oxygen (Lambda) Sensor B2 S1
          P2198 00 [175] - Signal too High (Rich)
          MIL ON - Confirmed - Tested Since Memory Clear
             Freeze Frame:
                    Fault Status: 00000001
                    Fault Priority: 2
                    Fault Frequency: 1
                    Mileage: 154004 km
                    Date: 2022.01.12
                    Time: 07:01:32

                    Engine speed: 1897.00 /min
                    Normed load value: 45.9 %
                    Vehicle speed: 115 km/h
                    Coolant temperature: 93 °C
                    Intake air temperature: 3 °C
                    Ambient air pressure: 980 mbar
                    Voltage terminal 30: 13.876 V
                    Unlearning counter according OBD: 40
                    AFS dm: 129.1 kg/h
                    Median injection timing: 1.614 ms
                    Engine operating condition: Part. load
                    Engine operating condition-Test_Program_Channel 87: 6

9025 - Manifold / Barometric Pressure Sensor (G71) / (F96)
          P0106 00 [168] - Implausible Signal
          MIL ON - Intermittent - Confirmed - Tested Since Memory Clear
             Freeze Frame:
                    Fault Status: 00000001
                    Fault Priority: 2
                    Fault Frequency: 1
                    Mileage: 154132 km
                    Date: 2022.01.12
                    Time: 08:14:00

                    Engine speed: 951.50 /min
                    Normed load value: 16.1 %
                    Vehicle speed: 22 km/h
                    Coolant temperature: 99 °C
                    Intake air temperature: 17 °C
                    Ambient air pressure: 980 mbar
                    Voltage terminal 30: 14.182 V
                    Unlearning counter according OBD: 40
                    AFS dm: 20.5 kg/h
                    Median injection timing: 0.801 ms
                    Engine operating condition: Idling
                    Engine operating condition-Test_Program_Channel 87: 5

Readiness: 0000 1101

Пропусков пока не замечено, я эти пропуски сам ощущаю, машина дергается.
Начнём с лямбд, какие менять/чинить проводку
На вкус и цвет все фломастеры разные. ¯_(ツ)_/¯
Аватара пользователя
alex6999
Член Клуба
Сообщения: 3746
Зарегистрирован: Сб мар 28, 2015 10:36 am
Репутация: 56
Модель: A8 2012
Мотор: CDRA
Город: Таронто
Имя: Лёша
Откуда: Минск
Контактная информация:

Комплекс проблем, особенно пропуски волнуют

Сообщение alex6999 »

Я так понял надо как минимум менять переднюю лямбду
Банк два это со стороны водителя или пассажира?
Родные сенсоры спереди и сзади разные, а на первый и второй банк не делятся
А вот бош говорит что на 1234 надо 17225 а на 5679 18232. Так ли это?
Последний раз редактировалось alex6999 Чт янв 13, 2022 10:59 am, всего редактировалось 1 раз.
На вкус и цвет все фломастеры разные. ¯_(ツ)_/¯
Аватара пользователя
Akin
Президент Клуба
Сообщения: 26203
Зарегистрирован: Пн авг 27, 2007 2:01 am
Репутация: 540
Модель: ___
Мотор: ___
Город: Королев
Имя: Владислав
Откуда: Москва

Комплекс проблем, особенно пропуски волнуют

Сообщение Akin »

alex6999 писал(а): Чт янв 13, 2022 10:42 amБанк два
Сторона водителя.
alex6999 писал(а): Чт янв 13, 2022 10:42 am Так ли это?
Спереди ставят одинаковые, в оригинале - 8K0906262J
Аватара пользователя
alex6999
Член Клуба
Сообщения: 3746
Зарегистрирован: Сб мар 28, 2015 10:36 am
Репутация: 56
Модель: A8 2012
Мотор: CDRA
Город: Таронто
Имя: Лёша
Откуда: Минск
Контактная информация:

Комплекс проблем, особенно пропуски волнуют

Сообщение alex6999 »

Оригинал больно дорого ставить, хотелосьбы аналог
Бош на своём сайте говорит что 17100 надо ставить
https://www.boschautoparts.com/p/premiu ... ors-17100-
Последний раз редактировалось alex6999 Чт янв 13, 2022 4:38 pm, всего редактировалось 2 раза.
На вкус и цвет все фломастеры разные. ¯_(ツ)_/¯
Аватара пользователя
alex6999
Член Клуба
Сообщения: 3746
Зарегистрирован: Сб мар 28, 2015 10:36 am
Репутация: 56
Модель: A8 2012
Мотор: CDRA
Город: Таронто
Имя: Лёша
Откуда: Минск
Контактная информация:

Комплекс проблем, особенно пропуски волнуют

Сообщение alex6999 »

Опять дергалось.
4 ошибки
Лямбда
Random/Multiple Cylinder Misfire Detected
И два цилиндра Misfire Detected толи 5 и 6, толи 7 и 8

Уже радует что не 4 циллиндра сразу, что делать?
На вкус и цвет все фломастеры разные. ¯_(ツ)_/¯
Аватара пользователя
Akin
Президент Клуба
Сообщения: 26203
Зарегистрирован: Пн авг 27, 2007 2:01 am
Репутация: 540
Модель: ___
Мотор: ___
Город: Королев
Имя: Владислав
Откуда: Москва

Комплекс проблем, особенно пропуски волнуют

Сообщение Akin »

Проверить катушки, переставив их на другие цилиндры.
Аватара пользователя
alex6999
Член Клуба
Сообщения: 3746
Зарегистрирован: Сб мар 28, 2015 10:36 am
Репутация: 56
Модель: A8 2012
Мотор: CDRA
Город: Таронто
Имя: Лёша
Откуда: Минск
Контактная информация:

Комплекс проблем, особенно пропуски волнуют

Сообщение alex6999 »

Спасибо займусь, махну наверное все справа на лево
На вкус и цвет все фломастеры разные. ¯_(ツ)_/¯
Аватара пользователя
alex6999
Член Клуба
Сообщения: 3746
Зарегистрирован: Сб мар 28, 2015 10:36 am
Репутация: 56
Модель: A8 2012
Мотор: CDRA
Город: Таронто
Имя: Лёша
Откуда: Минск
Контактная информация:

Комплекс проблем, особенно пропуски волнуют

Сообщение alex6999 »

Вообще все сенсоры разные.
Но мне кажется они одинаковые и это ауди чудит
На вкус и цвет все фломастеры разные. ¯_(ツ)_/¯
Аватара пользователя
Akin
Президент Клуба
Сообщения: 26203
Зарегистрирован: Пн авг 27, 2007 2:01 am
Репутация: 540
Модель: ___
Мотор: ___
Город: Королев
Имя: Владислав
Откуда: Москва

Комплекс проблем, особенно пропуски волнуют

Сообщение Akin »

У тебя старые номера. Я выше давал правильные.
Аватара пользователя
alex6999
Член Клуба
Сообщения: 3746
Зарегистрирован: Сб мар 28, 2015 10:36 am
Репутация: 56
Модель: A8 2012
Мотор: CDRA
Город: Таронто
Имя: Лёша
Откуда: Минск
Контактная информация:

Комплекс проблем, особенно пропуски волнуют

Сообщение alex6999 »

Это фотка экрана диллерского компа.
Ну и как бы чем выше буква, тем новее запцацка.
На вкус и цвет все фломастеры разные. ¯_(ツ)_/¯
Аватара пользователя
Akin
Президент Клуба
Сообщения: 26203
Зарегистрирован: Пн авг 27, 2007 2:01 am
Репутация: 540
Модель: ___
Мотор: ___
Город: Королев
Имя: Владислав
Откуда: Москва

Комплекс проблем, особенно пропуски волнуют

Сообщение Akin »

Леш, я не ошибся. Мои номера правильнее и новее.
Надо, сделаю скрины дилерской программы.

С буквой "как бы" - ключевое слово. Нужно смотреть весь номер целиком.
Ответить

Вернуться в «Помощь в расшифровке ошибок»
